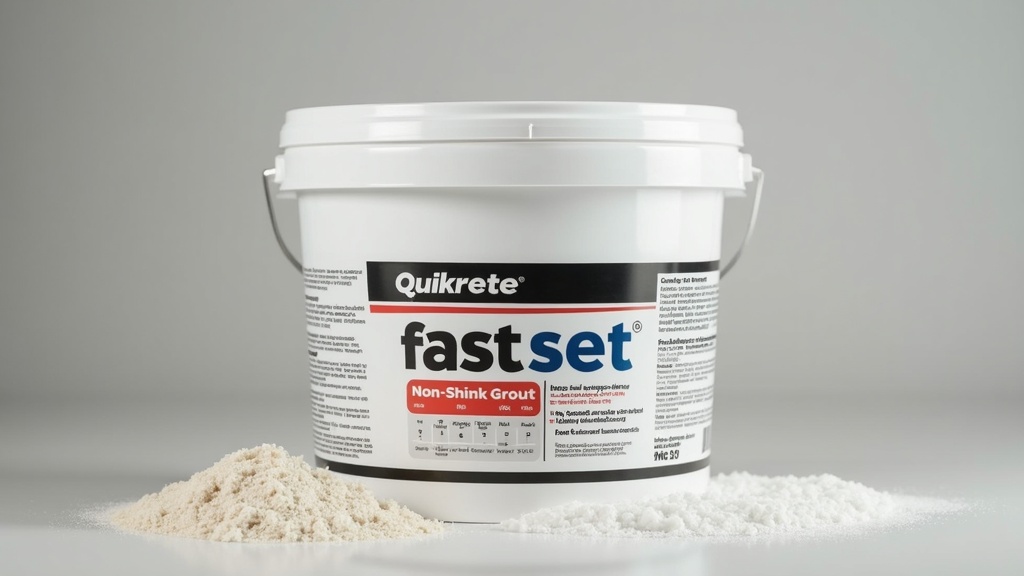

Quikrete Fast Set Non Shrink Grout

QUIKRETE Fast Set Non Shrink Grout: Mining & Tunneling Guide

Learn how QUIKRETE Fast Set Non Shrink Grout is used in mining and tunneling applications, from equipment grouting to structural repairs. This guide covers mixing, curing, and best practices for professionals.

Table of Contents

Quick Summary: QUIKRETE Fast Set Non Shrink Grout is a hydraulic cement-based, rapid-setting grout designed for structural repair, equipment grouting, and anchoring. Its non-shrink properties and high early strength make it suitable for demanding mining and tunneling environments where downtime must be minimized.

Quick Stats: QUIKRETE Fast Set Non Shrink Grout

  • Recommended mixing water: 7 quarts per 50 lb bag for fluid consistency (The QUIKRETE Companies, 2024)[1]
  • Minimum mechanical mixing time: 3 minutes (The QUIKRETE Companies, 2024)[1]
  • Required damp curing: at least 1 day for grouting applications (The QUIKRETE Companies, 2024)[1]
  • Recommended grout temperature range: 50°F to 90°F (The QUIKRETE Companies, 2024)[2]

What Is QUIKRETE Fast Set Non Shrink Grout?

QUIKRETE Fast Set Non Shrink Grout is a multi-purpose, hydraulic cement-based product engineered for applications where minimal volume change and rapid strength gain are critical. According to the QUIKRETE Technical Data Sheet, this grout is suitable for “structural repair, grouting, anchoring, leveling and much more” (The QUIKRETE Companies, 2024)[1]. In mining and tunneling, these characteristics are especially valuable for setting heavy equipment, anchoring rock bolts, and repairing concrete linings in environments where water ingress and vibration are constant challenges.

The grout achieves its non-shrink properties through a controlled expansion mechanism that compensates for plastic and drying shrinkage. This makes it ideal for load-bearing applications where gaps must remain completely filled. For professionals working underground, the reliability of this grout in wet conditions is a key advantage. It can be placed at fluid, flowable, or plastic consistencies depending on the job requirements.

Key Properties for Underground Use

The product’s rapid set time allows for quick return to service, which is essential in mining operations where production downtime can be extremely costly. The QUIKRETE Construction Products Guide specifies that the grout should be used as a “non shrink, rapid setting, high strength repair mortar for horizontal structural patch and repair of existing concrete substrate” (The QUIKRETE Companies, 2024)[2]. This makes it suitable for repairing haul road surfaces, loading docks, and tunnel invert slabs.

Mixing and Application for Mining Equipment

Proper mixing is critical to achieving the specified performance of QUIKRETE Fast Set Non Shrink Grout. The product data sheet recommends a minimum of 3 minutes of mechanical mixing after all water and material are combined (The QUIKRETE Companies, 2024)[1]. For fluid consistency, 7 quarts of water per 50 lb bag is specified, while a flowable consistency requires 5.5 quarts (The QUIKRETE Companies, 2024)[1]. These precise ratios ensure the grout flows properly into tight spaces under equipment baseplates without segregation.

In mining and tunneling, the method of mixing can significantly impact the quality of the final product. Traditional paddle mixers are common, but they often struggle to achieve the homogeneous dispersion of cement particles and additives required for consistent non-shrink performance. This is where specialized equipment becomes relevant. For large-scale grouting operations, using a colloidal grout mixer for mining and tunneling can produce a more uniform, stable grout with better particle suspension, reducing the risk of bleeding and settlement.

Consistency Selection

The choice between fluid, flowable, and plastic consistency depends on the application. For grouting beneath heavy machinery like crushers or mill foundations, a fluid consistency with a maximum flow time of 20 seconds per ASTM C939 is recommended (The QUIKRETE Companies, 2024)[1]. For vertical repairs or overhead applications, a plastic consistency with a slump of 3-6 inches is more appropriate (The QUIKRETE Companies, 2024)[1]. The grout temperature must be maintained between 50°F and 90°F (10°C – 32°C) to achieve specified results (The QUIKRETE Companies, 2024)[2].

Curing and Quality Control in Tunneling

Curing is arguably the most critical phase for ensuring the long-term performance of QUIKRETE Fast Set Non Shrink Grout in tunneling environments. The QUIKRETE Technical Data Sheet states: “A damp cure of at least 1 day is necessary to control the non-shrink characteristics and maintain strength levels” (The QUIKRETE Companies, 2024)[1]. For grouting applications, this damp curing period is non-negotiable. In tunnel conditions where groundwater infiltration is common, maintaining a damp environment may be easier, but care must be taken to prevent washout of fresh grout.

The Construction Products Guide further emphasizes that “grouting applications must be damp cured for at least one day. No special curing procedures are required for repair applications” (The QUIKRETE Companies, 2024)[2]. This distinction is important for tunnel crews who may be applying the grout as a repair mortar for spalled concrete or as a foundation grout for track rails. For repairs deeper than 2 inches, up to 30 pounds of 1/2-inch gravel can be added per 50 lb bag to reduce heat generation and shrinkage (The QUIKRETE Companies, 2024)[1].

Temperature Management Underground

Underground environments can have variable temperatures. The recommended grout temperature range of 50°F to 90°F must be maintained throughout mixing and placement (The QUIKRETE Companies, 2024)[2]. In deep mines where ambient temperatures can exceed 100°F, chilled mixing water may be necessary. Conversely, in cold-weather tunneling, heated water and insulated forms may be required to keep the grout within the specified range.

Structural Repairs and Anchoring Below Grade

QUIKRETE Fast Set Non Shrink Grout is widely used for structural repairs in mining infrastructure, including shaft linings, adit supports, and pump station floors. The product’s ability to be placed at a minimum vertical edge thickness of 0.5 inches for areas subject to heavy traffic makes it suitable for high-wear zones (The QUIKRETE Companies, 2024)[2]. For anchoring applications such as rock bolts or ladder rails, the grout’s rapid strength gain allows for quick loading.

The non-shrink characteristic is particularly important in anchoring, where any volume reduction could compromise the bond between the grout and the surrounding rock or steel. The controlled expansion mechanism ensures that the grout maintains intimate contact with the substrate throughout its service life. For professionals working in these demanding conditions, the reliability of this grout in critical structural applications is paramount.

Below-Grade Installation Tips

When placing grout below the water table, dewatering should be maintained until the grout has achieved sufficient strength. The product data sheet notes that for repair applications, no special curing procedures are required, but for grouting applications, the damp cure must be strictly followed (The QUIKRETE Companies, 2024)[2]. In flowing water conditions, a grout shield or form may be necessary to protect the fresh grout during the initial set.

Important Questions About QUIKRETE Fast Set Non Shrink Grout

Can QUIKRETE Fast Set Non Shrink Grout be used underwater?

QUIKRETE Fast Set Non Shrink Grout is a hydraulic cement-based product, meaning it can set and harden underwater. However, placement in flowing water or direct immersion requires special precautions to prevent washout. The grout should be placed in a dewatered environment whenever possible, and the water table should not be allowed to rise until the grout has achieved initial set. For underwater repairs, a grout shield or tremie method may be necessary. Always consult the product data sheet for specific guidance on underwater applications.

What is the working time of QUIKRETE Fast Set Non Shrink Grout?

The working time of QUIKRETE Fast Set Non Shrink Grout varies with ambient temperature and consistency. At 70°F, the grout typically remains workable for approximately 15-30 minutes after mixing. Higher temperatures reduce working time, while lower temperatures extend it. The product is designed to be rapid-setting, so batch sizes should be planned accordingly. For large-volume placements, multiple batches should be coordinated to ensure continuous placement without cold joints. The recommended grout temperature range is 50°F to 90°F (The QUIKRETE Companies, 2024)[2].

How does QUIKRETE Fast Set Non Shrink Grout achieve its non-shrink properties?

The grout achieves non-shrink performance through a controlled expansion mechanism. Special additives in the formulation generate a slight, controlled expansion during the early hydration process, which compensates for the natural plastic and drying shrinkage that occurs as the material cures. This expansion is carefully calibrated to ensure the grout remains in intimate contact with the substrate without causing disruptive forces. Proper damp curing for at least 1 day is essential to control these non-shrink characteristics and maintain strength levels (The QUIKRETE Companies, 2024)[1].

Can aggregate be added to QUIKRETE Fast Set Non Shrink Grout?

Yes, for repairs deeper than 2 inches, up to 30 pounds of clean, well-graded gravel with a top size of 1/2 inch or less can be added per 50 lb bag (The QUIKRETE Companies, 2024)[1]. Adding aggregate helps reduce heat generation in thick sections, controls shrinkage, and extends the volume of the material. The aggregate should be pre-wetted to a saturated surface-dry condition to avoid absorbing mix water. For grouting applications where flow is critical, such as under machinery baseplates, aggregate addition is generally not recommended as it can impede flow.

Comparison: Colloidal Mixing vs. Paddle Mixing

The method used to mix QUIKRETE Fast Set Non Shrink Grout directly affects its final properties. Traditional paddle mixers are common on job sites, but they may not achieve the same level of particle dispersion as high-shear equipment. The table below compares two common mixing approaches for large-scale underground grouting operations.

Feature Paddle Mixer Colloidal Mixer
Mixing Shear Low to moderate High shear
Particle Dispersion Variable, may require longer mixing Uniform, complete dispersion
Bleeding Risk Higher if under-mixed Reduced due to better suspension
Recommended for Small batches, plastic consistency Large volumes, fluid consistency

For mining and tunneling operations where large volumes of fluid grout are required for equipment foundation grouting, a colloidal grout mixing system provides superior particle suspension and consistency, ensuring the non-shrink properties are fully realized throughout the batch.

Practical Tips for Underground Use

Working with QUIKRETE Fast Set Non Shrink Grout in mining and tunneling environments requires attention to several key factors. First, always pre-wet the substrate thoroughly before placement to prevent the substrate from absorbing water from the grout. This is especially important in dry underground conditions where rock surfaces can be highly absorptive. Second, ensure that forms are watertight and properly braced, as the fluid consistency can exert significant pressure on formwork.

Third, plan batch sizes carefully. The rapid set time means that mixed grout must be placed within its working life. For large placements, have multiple mixing crews or a continuous mixing system ready. Fourth, use the recommended water content precisely. Adding extra water to improve workability will compromise strength and non-shrink performance. Fifth, maintain the grout temperature within the 50°F to 90°F range. In hot mines, use chilled water; in cold conditions, use warm water and insulated forms.

Finally, always follow the damp curing requirement of at least 1 day for grouting applications (The QUIKRETE Companies, 2024)[1]. Apply wet burlap, plastic sheeting, or curing compound to maintain moisture. For critical structural applications, consider extending the curing period beyond the minimum to ensure maximum strength development. For more detailed guidance on grout mixing equipment, consult the official QUIKRETE product data sheet for complete technical specifications.

Key Takeaways

QUIKRETE Fast Set Non Shrink Grout is a versatile, high-performance material well-suited to the demanding conditions of mining and tunneling. Its rapid strength gain, non-shrink properties, and multiple consistency options make it an excellent choice for equipment grouting, structural repairs, and anchoring applications. Success depends on proper mixing, strict adherence to water ratios, and disciplined damp curing. For large-scale operations, investing in high-shear mixing equipment can improve consistency and reduce waste.

Useful Resources

  1. FASTSET Non-Shrink Grout Product Data Sheet. The QUIKRETE Companies.
    https://www.quikrete.com/pdfs/data_sheet-fastsetnonshrinkgrout-1585-20-1585-50.pdf
  2. FastSet Nonshrink Grout – Construction Products Guide. The QUIKRETE Companies.
    https://www.quikrete.com/construction-products-guide/-/assets/files/fastset%20nonshrink%20grout.doc
